| www.tradefinal.com |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Phone: (313) 586-8886 |
|
| For quotes &
inquiries email: sales@tradefinal.com |
|
| STS-85292G |
|
|
|
|
|
| MODEL / PART# |
UNIT
PRICE(USD/PC)
FOB CHONGQING |
|

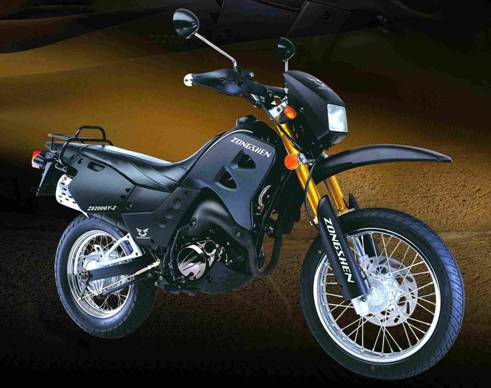

| ZS200GY-2 |
|
|
|
|
|
| Specification |
|
|
| ENGINE TYPE |
Air
cooled,4 Stroke,Single cyclinder |
|
| STROKE |
55.70mm |
|
| DISPLACEMENT |
196ml |
|
| MAX.POWER
OUTPUT |
11kw/7500min. |
|
| MAX.TORQUE |
14.5N.m/6500Min. |
|
| APPR. FUEL
CONSUMPTION |
2.8L/100km |
|
| STARTER
SYSTEM |
Electric/Kick |
|
| DEMENSIONS(LXWXH) |
2180*810*1200mm |
|
| WHEELBASE |
1345.00mm |
|
| GROUND
CLEARANCE |
250.00mm |
|
| FUEL CAPACITY |
8.0±0.5L |
|
| SUSPENSION(FR./RR.) |
Hydraulic-Pressed
Spring Style/Hydraulic-Pressed Spring Style |
|
| BRAKES
FRONT/REAR |
Disc/Drum |
|
| DRY WEIGHT |
135.00kg |
|
| WHEEL
SIZE(FR./RR.) |
2.15X18/2.75X15 |
|
| WHEEL TYPE |
Spoke |
|
| ADR
certificate no. |
36322 |
|
| COLORS |
Black,Green,Yellow |
|
| |
|
|
| Package |
|
|
| PACKAGE 1 |
Carton+Iron
frame |
|
| PACKING SIZE
1 |
1800*565*1080mm |
|
| DISASSEMBLED
PARTS |
Fr.wheel,Fr.mudguard,Handle
bar,Rr.view mirror, |
|
| LOAD Q'TY |
20'GP=24units 40'GP=52units 40'HQ=52units |
|
| PACKAGE 2 |
Wooden
Box |
|
| PACKING SIZE
2（A） |
1860*570*1060mm |
|
| DISASSEMBLED
PARTS |
Fr.wheel,Fr.mudguard,Handle
bar,Rr.view mirror, |
|
| LOAD Q'TY |
20'GP=24units 40'GP=50units 40'HQ=50units |
|
| PACKING SIZE
2（B） |
1805*565*860mm |
|
| DISASSEMBLED
PARTS |
Rr.mirror,Electrolyte,
Fr.fender & accessories, Rr.carrier, Side covers, Handbar, Cowling
cover,Headlight, Fr.wheel assy., Fr.axle, Handle clip, Fr.&rr.damper, Air
cleaner |
|
| LOAD Q'TY |
40'HQ=78units |
|
|
|
|
| payment:
by T/T, 30% upon the confirmation of order, 70% balance before shipment |
|
| shipment:
deliver in 25 days after the receipt of 30% payment |
|
|
| this quotation will keep
valid for one month. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
