| STS-58232G |
|
|
|
|
|
| MODEL / PART# |
UNIT
PRICE(USD/PC)
FOB CHONGQING |
|

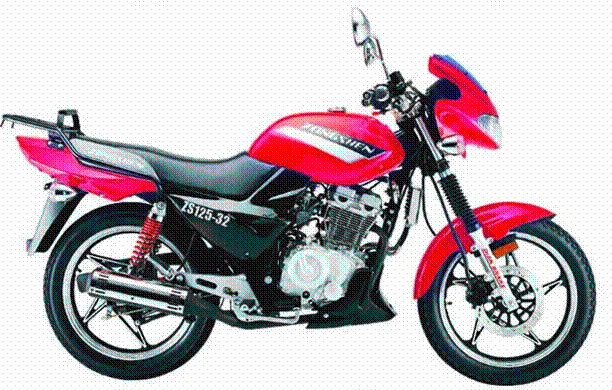

| ZS125-32 |
|
|
|
|
|
| Specification |
|
| ENGINE TYPE |
Oil cooled,4 Stroke,Single cyclinder |
|
| STROKE |
48.80mm |
|
| DISPLACEMENT |
124.50ml |
|
| MAX.POWER
OUTPUT |
8.50kw/9500min. |
|
| MAX.TORQUE |
9.5N.m/8000Min. |
|
| APPR. FUEL
CONSUMPTION |
2.1L/100km |
|
| STARTER
SYSTEM |
Electric/Kick |
|
| DEMENSIONS(LXWXH) |
2050*735*1100mm |
|
| WHEELBASE |
1345.00mm |
|
| GROUND
CLEARANCE |
130.00mm |
|
| FUEL CAPACITY |
15±0.5L |
|
| SUSPENSION(FR./RR.) |
Hydraulic-Pressed
Spring Style/Hydraulic-Pressed Spring Style |
|
| BRAKES
FRONT/REAR |
Disc/Drum |
|
| DRY WEIGHT |
150.00kg |
|
| WHEEL
SIZE(FR./RR.) |
1.60X18/1.85X18 |
|
| WHEEL TYPE |
Alloy |
|
| EURO III No. |
e4*2002/24*1319 |
|
| COLORS |
Red,Blue |
|
|
|
| Package: |
|
|
| PACKAGE 1 |
Carton+Iron frame |
|
| PACKING SIZE
1 |
1800*565*1110mm |
|
| DISASSEMBLED
PARTS |
Fr.wheel,Fr.mudguard,Handle
bar,Rr.view mirror, |
|
| LOAD Q'TY |
20'GP=24units 40'GP=50units 40'HQ=50units |
|
| PACKAGE 2 |
Wooden Box |
|
| PACKING SIZE
2 |
1860*570*1060mm |
|
| DISASSEMBLED
PARTS |
Fr.wheel,Fr.mudguard,Handle
bar,Rr.view mirror, |
|
| LOAD Q'TY |
20'GP=24units 40'GP=50units 40'HQ=50units |
|
|
|
| payment: by
T/T, 30% upon the confirmation of order, 70% balance before shipment |
|
| shipment:
deliver in 25 days after the receipt of 30% payment |
|
|
| this quotation will keep valid for one
month. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
