| STS-85231G |
|
|
|
|
|
| MODEL / PART# |
UNIT
PRICE(USD/PC)
FOB CHONGQING |
|

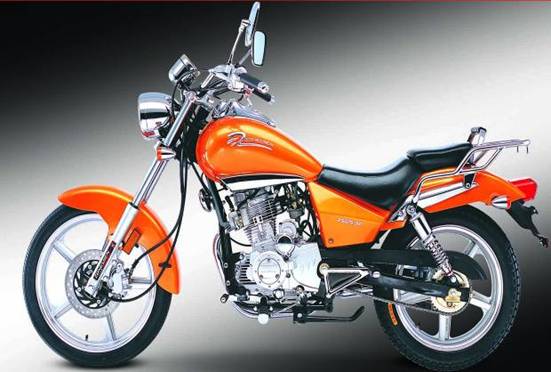

| ZS125-30 |
|
|
|
|
| Specification |
|
| ENGINE TYPE |
Air cooled,4 Stroke,Single cyclinder |
|
| STROKE |
4 Stroke |
|
| DISPLACEMENT |
124.60ml |
|
| MAX.POWER
OUTPUT |
8.30kw/9500min. |
|
| MAX.TORQUE |
8.6N.m/8000Min. |
|
| APPR. FUEL
CONSUMPTION |
2.1L/100km |
|
| STARTER
SYSTEM |
Electric/Kick |
|
| DEMENSIONS(LXWXH) |
2145*840*1065mm |
|
| WHEELBASE |
1390.00mm |
|
| GROUND
CLEARANCE |
140.00mm |
|
| FUEL CAPACITY |
8L |
|
| SUSPENSION(FR./RR.) |
Hydraulic-Pressed
Spring Style/Hydraulic-Pressed Spring Style |
|
| BRAKES
FRONT/REAR |
Disc/Drum |
|
| DRY WEIGHT |
115.00kg |
|
| WHEEL
SIZE(FR./RR.) |
2.75X18/3.25X16 |
|
| WHEEL TYPE |
Alloy |
|
| EURO III NO. |
e4*2002/24*0772 |
|
| COLORS |
Orange |
|
|
|
| Package: |
|
|
| PACKING |
Carton+Iron & Wood frame |
|
| PACKING SIZE |
1860*570*935mm |
|
| DISASSEMBLED
PARTS |
Fr.wheel,Handle bar |
|
| LOAD Q'TY |
20'=24units;40'GP=50units;40'HQ=50units |
|
|
| payment: by
T/T, 30% upon the confirmation of order, 70% balance before shipment |
|
| shipment:
deliver in 25 days after the receipt of 30% payment |
|
|
| this quotation will keep valid for one
month. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
