STS-85226G
KC VEHICLE QUOTATIONSHEET
product scooter
MODEL / PART# ZN150T-7B
price (regarding to: ordered q'ty/single unit/min. q'ty) FOB NINGBO
terms of shippment in 20-25 days after receving your 30% payment
terms of payment by T/T, 30% upon the confirmation of order,70% before shipment

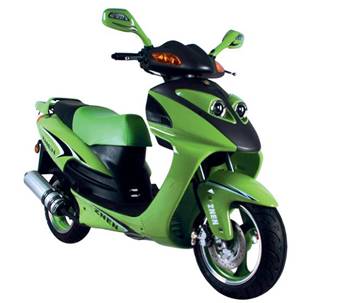

PRODUCT PICTURE (min 300 dpi 15 x 15) PACKING
ZN150T-7B (Small)

unit packing: (WxHxL) 1980*580*1200

units per 40HQ 48
minimum order qty a 40HQ
MAIN FUNCTIONS
Vehicle specification:
Seat: (single seat or double seat) according to homologation double seat
Mass of the vehicle (with bodywork) in running order: 118 kg
Unloaden mass of the vehicle 115 kg
Technically permissible maximum laden mass: 265 kg
Technical permissible mass on each axle: 145 kg
  200 kg
Maximum Speed: 85 km/h
Maximum power (power/mass) of the vehicle in running order: 0.53 Kw/kg
Cylinder capacity: 149.6 cm3
working principle 4 stroke
cooling type force wind
fuel: P
clutch type automatic
transmission type CVT
noise:                                                   stationary (at idle speed rpm) 83 db
at drive speed 76 db
starter type electric/foot
wheels and tyres:                                                                      front: 130/60-13
rear: 130/60-13
Vehicle Dimensions                                                       wheel base: 1365 mm
length: 1942 mm
width: 702 mm
height: 1168 mm
exhaust emissions: 125cc mg
homologation number e4*2002/24*01438*00
brake Fr. Disc/Rr. Drum
oil consumption (L/100KM) 2.9
WARRANT CONDITIONS OPTIONAL ACCSSORIES
2% FREE SPARE PARTS REAR BOX, ALARM,ABSHELMET
AVILABLE QUALITY CERTIFICATES
EEC,  EPA.DOT,3C
