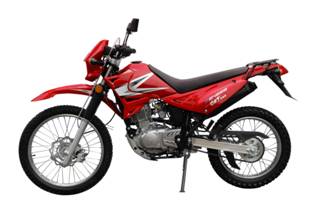

| MODEL/ITEM# |
QM200GY |
|
| Motor |
Model |
|
|
| |
|
|
|
| Cilindrada |
Piston displacement |
199ml |
|
| Tiempos |
Number of cylinder |
1 |
|
| Enfriamiento |
Cooling |
air - cooled |
|
| Potencia Máxima |
Maximum power |
11.5kw/8000rpm |
|
| Par Máximo |
Maximum Torque |
14.5nm/7500rpm |
|
| Diámetro por carreta |
Bore & Stroke |
66x58.5 mm |
|
| Relación de Compresión |
Compression ratio |
9.4:1 |
|
| Arranque |
Starting |
electric and kick starting |
|
| Encendido |
Ignition |
CDI |
|
| Transmisión |
Transmission |
5 speed gear shift |
|
| |
|
|
|
| Chasis |
|
|
|
| |
|
|
|
| Suspención Delantera |
Front Suspención |
oil dump spring |
|
| Suspención Trasera |
Back Suspención |
oil dump spring |
|
| Freno Delantero |
Front Brake |
disc brake |
|
| Freno Trasero |
Back Brake |
drum brake |
|
| Llanta Delantera |
Front Rim |
2.75 - 21 |
|
|
| Llanta Trasera |
Back Rim |
4.10 - 18 |
|
| |
|
|
|
| Dimenciones |
|
|
|
| |
|
|
|
| Dimención Total(LxAxAL) |
Dimension Total(LxWxH) |
2120mm x 800mm x 1180mm |
|
| Altura del Asiento |
Height of the Seat |
900mm |
|
| Distancia entre Ejes |
Wheelbase |
1400mm |
|
| Distancia mínima del suelo |
Ground clearance |
123mm |
|
| Capacidad de Combustible |
Fuel capacity |
10.6L |
|
| Peso en Seco |
Dry weight |
117KG |
|
| Colores |
Colors |
black, red, yellow, silver |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
