MODEL/ITEM# |
FOB CHONGQING |
|

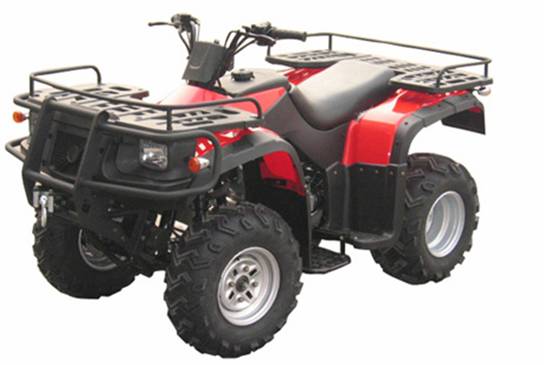

ATV300 |
|
|
|
|
|
|
|
|
|
|
|
|
specification: |
|
Overall
Length(mm): |
1850 |
|
Overall
Width(mm): |
1140 |
|
Overall
Height(mm): |
1190 |
|
Seat
Height(mm): |
900 |
|
Wheel
Base(mm): |
1170 |
|
Ground
Clearance (mm): |
185 |
|
Minimum
Turning Radius(mm): |
2000 |
|
Engine Type: |
4
Stroke Air Cooled (GN300) SOHC |
|
Cylinder
Arrangement |
Single
Cylinder |
|
Bore ×
Stroke(mm): |
78×61.2 |
|
Displacement(cc): |
292 |
|
Corrected
Compression Ratio: |
8.9:1 |
|
Maximum Power
(kW/r/m): |
16.1/8000 |
|
Maximum
Torque (N.m/r/min): |
20/6000 |
|
Starting
System: |
Electric
Starter |
|
Ignition
System: |
I.D. |
|
Lubrication
System: |
Force
& Splash |
|
Transmission
System: |
5-Speed
with Reverse |
|
Transmission
Operation Type: |
Left
Foot Operation |
|
Spark Plug
Gap (mm): |
0.6-0.7 |
|
Clutch Type: |
Manual |
|
Fuel Type: |
RQ90
(unleaded) |
|
Lubricate Oil Type: |
SAE
5W/30-15W/40 |
|
Maximum Load
(kg): |
150 |
|
Fuel Tank
Capacity (L): |
8.7 |
|
Engine Oil
Capacity (L): |
1.3 |
|
Battery Type/Capacity: |
12V/20Ah |
|
Top
Speed (Km/h): |
90 |
|
Front/Rear Brake: |
Disc/Disc |
|
Front/Rear
Brake Operation |
Right
Hand Operation/Left Hand & Right Foot Operation |
|
Front/Rear
Tire Size: |
AT22×7-10/AT22×10-10 |
|
Front/Rear
Tire Type: |
Tubeless |
|
Front Tire
Pressure (kPa): |
20 |
|
Rear Tire Pressure (kPa): |
25 |
|
Front Shock
Absorber: |
Coil
Spring/ Oil Damper |
|
Rear Shock
Absorber: |
Coil
Spring/Oil Damper |
|
Front Suspension: |
Dual
A Arm |
|
Rear
Suspension: |
Swing
Arm |
|
Final
Transmission Type: |
Chain
Drive |
|
Net Weight (Kg): |
200 |
|
|
package: 1720*1150*860,39PCS to one 40'HQ, |
|
payment:
by T/T, 30% upon the confirmation of order, 70% before shipment |
|
shipment:
deliver in 30 days after the receipt of 30% payment |
|
|
|
|
|
|
|
|
|
|
|
|
