Item

UNIT PRICE(USD/PC)
FOB CHONGQING

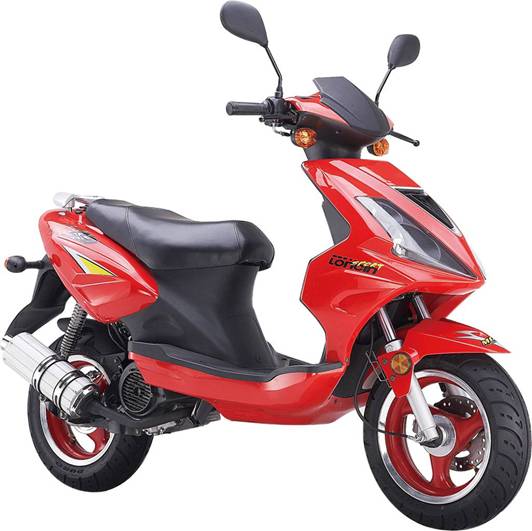

LX150T-15A

650

specification:

Vehicle Type

B10(150CC)

Engine Type

One cylinder,4 stroke,air-cooled

Engine Model

LC157QMJ

Cylinder Arrangement

Single Cylinder

Bore×Stroke (mm)

57.4×57.8

Piston Displacement (cc)

149.6

Compression Ratio

9.0:1

Maximum Power (kw/r/min)

7.0/8000

Maximum Torque (N.m./rpm)

9.0/5500

Transmission System

Strap Drive

Ignition Type

C.D.I

Starter System

Electric/Kick

Transmission

Stepless

L×W×H (mm)

1870×660×1175

Wheel Base (mm)

1250

Ground Clearance (mm)

160

Dry Weight (kg)

106

Brake (Front/Rear)

Disk/Drum

Tyre, Front

120/70-12

Tyre, Rear

130/70-12

Fuel Tank Capacity (L)

4.5

Engine Oil Capacity (L)

0.8

Max. Load Capacity (kg)

150

Max. Speed（km）

Battery

12V7A.h

package: 75PCS to one 40'HQ

payment: by T/T, 30% upon the confirmation of order, 70% before shipment

shipment: deliver in 30 days after the receipt of 30% payment
